You’ll get roughly 8.2 kWh of cell energy (about 3.8–8.2 kWh usable depending on derating), a 200A BMS with over/under‑voltage, overcurrent and thermal protection, and very long cycle life (4,000+ at 100% DOD, far more at reduced DOD). Expect real‑world losses from wiring, C‑rate and temperature, so plan margins, proper cabling, and LiFePO4 charging profiles. Below you’ll find practical installation, expansion and lifecycle cost details.
Some Key Takeaways
- Nominal pack marketed as 12V 640Ah (two 12V 320Ah units) provides ~8,192 Wh raw, but realistic usable energy ≈3,840 Wh per product spec.
- Expect high cycle life: ~4,000 cycles at 100% DOD, 6,000 at 80% DOD, and ~15,000 at 60% DOD with proper BMS.
- Built‑in 200A BMS offers overcharge/discharge, overcurrent, short‑circuit, and thermal protections plus active thermal management.
- Real‑world usable capacity and runtime drop with high C‑rates, wiring losses, and extreme temperatures—derate accordingly.
- Install with torque‑rated terminals, correctly sized fuses/breakers, LiFePO4 charger/MPPT settings, and matched cells for expansion.
Real-World Capacity and Runtime: What a 12V 640Ah LiFePO4 Actually Delivers

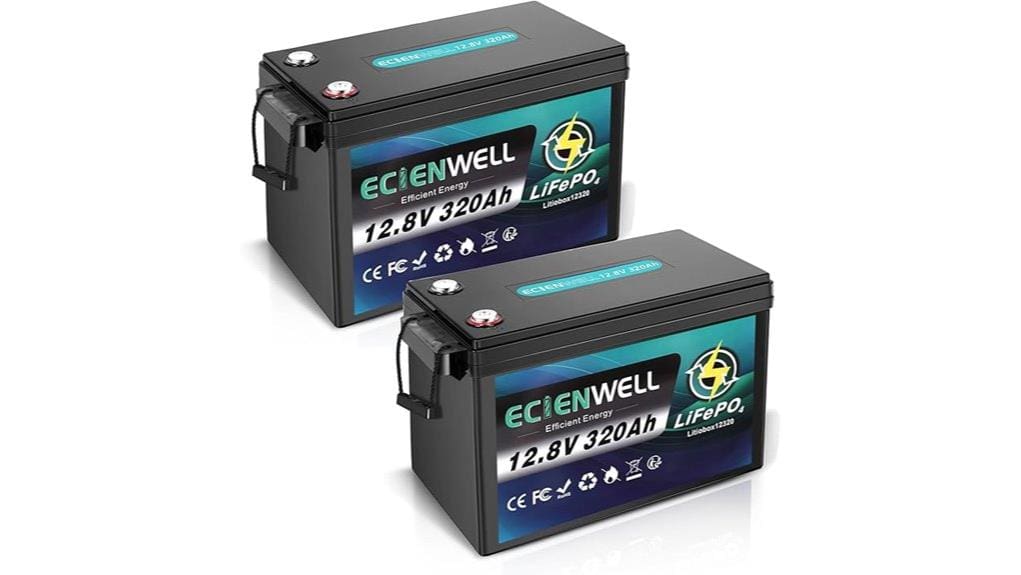

While the pack is marketed as 12V 640Ah, you should expect real-world energy closer to the underlying cell configuration: two 12V 320Ah units yield about 4,096 Wh each (≈8,192 Wh combined) in ideal conditions, though the product title lists 3,840 Wh per pack configuration due to nominal voltage and usable capacity assumptions. You’ll verify usable energy by checking measured voltage under load and integrating current over time. Real world efficiency drops with higher C‑rates and wiring losses. Temperature effects shift capacity and internal resistance, so plan runtime margins and derating for cold or hot environments to preserve usable energy.
Safety, BMS, and Durability: Cycle Life, Protection Features, and Environmental Ratings
Knowing the real-world energy you can draw from the pack helps frame why protection and longevity matter: the cells and management system determine how closely delivered capacity matches specs over time. You get 4000+ cycles at 100% DOD, 6000 at 80%, and 15000 at 60%, projecting a 10+ year life. The built-in 200A BMS enforces overcharge, over-discharge, overcurrent, short circuit and thermal protections, and supports active thermal management to prevent degradation. IP65 applications allow dust-tight, water-resistant deployment. Materials exclude heavy metals and use ~70% recycled content, giving you durable, compliant, low-maintenance freedom.
How to Use This Battery: Installation, Charging, Wiring, and Expansion Tips
Before you install the battery, plan the system layout, mounting, and ventilation to guarantee safe operation and easy access to the BMS terminals and wiring. Mount the unit with secure mounting hardware on a rigid, vibration‑isolated surface; maintain specified ventilation clearance around the enclosure. Use appropriately sized cables, crimped lugs, and torque‑rated terminals; fuse or breaker the positive lead per BMS max current. Charge with a LiFePO4‑profile charger or MPPT solar regulator set to correct voltages and temp compensation off. When paralleling or series‑expanding, match capacities, state‑of‑charge, age, and use a battery balancer and identical BMS settings. Consider carrying a compact GPS backup battery specifically designed for kayakers and beginners to ensure navigation devices remain powered during extended trips.
Comparing Alternatives: 12V 640Ah vs. Lead‑Acid, Other LiFePO4 Sizes, and 24/48V Setups
When you weigh the 12V 640Ah LiFePO4 option against lead‑acid, smaller LiFePO4 units, and 24/48V architectures, focus first on energy density, cycle cost, and system efficiency: the 12V 640Ah delivers much higher usable watt‑hours per kilogram and far greater cycle life (reducing lifecycle cost) compared with equivalent lead‑acid banks, while smaller 12V LiFePO4 modules offer modularity and lighter installs but require more interconnections for large capacity; moving to 24V or 48V reduces current for the same power (smaller cabling, lower I2R losses) and is generally preferable for inverter‑heavy or high‑draw systems, though it demands series balancing and compatible BMS/charger hardware.
You’ll prefer 12V 640Ah when you want simplified voltage translation to 48V via 4S packs without many parallel balancing headaches; choose smaller modules if transport and staged expansion trump system simplicity.
Buying Checklist and Cost of Ownership: Key Specs, Warranty, and Long‑Term Value
Because total cost and long‑term reliability hinge on more than just amp‑hours, you should evaluate specs that directly affect lifecycle cost and system performance: true usable Wh (accounting for recommended DOD), cycle life at target DOD, BMS limits (continuous/discharge/charge currents and cell balancing), thermal and IP ratings for your environment, and compatibility with your inverter/charger and charging profile. Next, quantify expected cycles to failure and divide purchase price by usable lifetime Wh to compare total costs. Check warranty terms (coverage period, prorated replacement, shipping). Prioritize high cycle life, robust BMS, service support, and expandability for long‑term value.
Some Questions Answered
How Do I Transport and Ship a 12V 640AH Lifepo4 Battery Safely?
You ship it by following packaging standards, labeling, and airline restrictions: disconnect and isolate terminals, use insulated terminal covers, secure in strong outer packaging with cushioning to prevent movement, include BMS documentation and UN/DOT declarations, and limit state of charge per carrier rules. You’ll choose a specialized hazmat carrier, get required permits, declare watt‑hours and battery count, and follow training, emergency response info, and local hazardous materials regulations.
Can I Use This Battery for Cold-Weather Starting of Diesel Engines?
Yes — you can, but with caveats. You’ll get strong cold cranking performance if you size the pack and C-rating for high discharge; LiFePO4’s low-temperature chemistry reduces available capacity below 0°C. Implement active thermal management and preheating to maintain cell temperature for reliable starts. Use the built-in BMS, proper cabling, and a heater or insulated enclosure. Test under worst-case ambient conditions before relying in remote situations.
What Maintenance or Monitoring Apps Integrate With the BMS?
You can use the built-in BMS with third-party Battery monitoring apps that support CAN/RS485 or Bluetooth; mobile integration typically works via the manufacturer’s Bluetooth module and apps like VictronConnect, Smart BMS, or proprietary ECIENWELL tools. You’ll get SOC, voltage, cell balance, temp, and fault logs. You’ll want to enable real-time alerts, firmware updates, and periodic data exports so you stay autonomous and in control of system health.
Are There Rental or Recycling Programs for End-Of-Life Lifepo4 Packs?
Yes — you can access battery leasing and manufacturer take back programs for LiFePO4 packs. You’ll find rental options for short‑term power and long‑term leasing that shift replacement responsibility to providers. Take back programs accept end‑of‑life units for recycling or refurbishment, often coordinated with installers or retailers. You’ll want written terms on warranties, transport, and data wiping. Check certifications, recycling chain transparency, and regional compliance before committing.
How Do Warranty Claims Work for Batteries Used in Commercial Fleets?
You contact the manufacturer, provide warranty transferability proof if fleets change ownership, and file claims with required documentation. You'll submit serial numbers, installation logs, load profiles, maintenance records, incident reports, and photos/videos. The vendor evaluates remotely, may require return authorization, and performs diagnostics. If covered, they'll repair, replace, or credit per policy. You retain copies of all claims documentation and correspondence to preserve rights and expedite resolution.
